Description

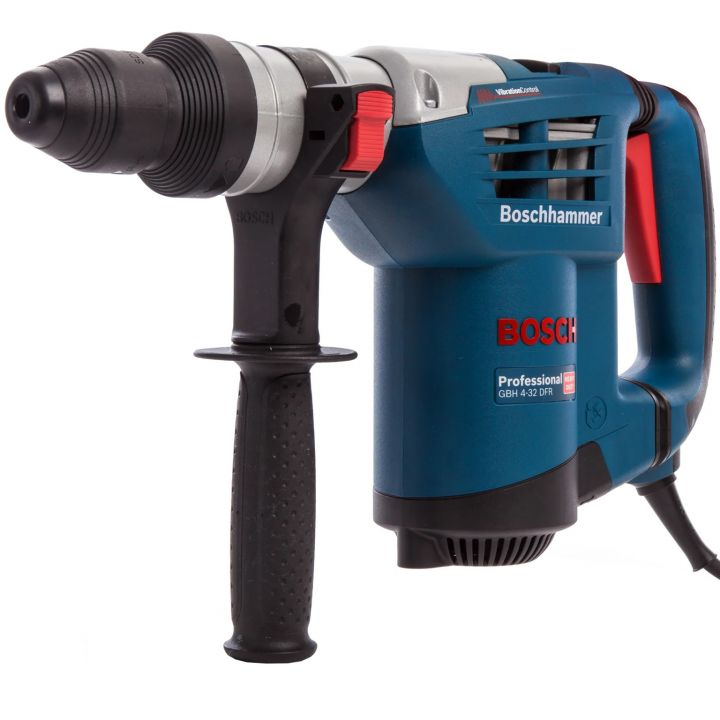

The powerful GBH 4-32 DFR Professional with SDS plus and 900 W motor delivers an impact energy of 4.2 J for a very high chisel removal rate. The hammer drill is designed for durability and has a very robust metal gear housing. Thanks to Vibration Control, you can work effortlessly with continuous and time-consuming applications.
Equipment and application
This hammer drill is suitable for drilling and chiseling in concrete, masonry, wood and metal. It is compatible with various system accessories for dust extraction.
Additional Information
The GBH 4-32 DFR Professional also has functions such as keyless chuck, clockwise / counterclockwise rotation, overload clutch, variable speed and Vario-Lock.
TECHNICAL SPECIFICATIONS
Rated input power 900 W
Impact energy 4.2 y
Number of strokes at nominal speed 0 – 3,600 bpm
Rated speed 0 – 800 min-1
weight 4.7 kg
Tool holder SDS plus
Drilling area Drill-Ø concrete, hammer drill 6 – 32 mm
Opt. Application area concrete, hammer drill 14-25 mm
Max. Drilling Ø masonry, drill bits 90 mm
Max. Drilling diameter in metal 13 mm
Max. Drilling Ø in wood 32 mm
Vibration total values (hammer drilling in concrete)
Vibration emission value ah 12 m / s²
Uncertainty K 1.5 m / s²
Vibration total values (chiselling)
Vibration emission value ah 9 m / s²
Uncertainty K 1.5 m / s²
