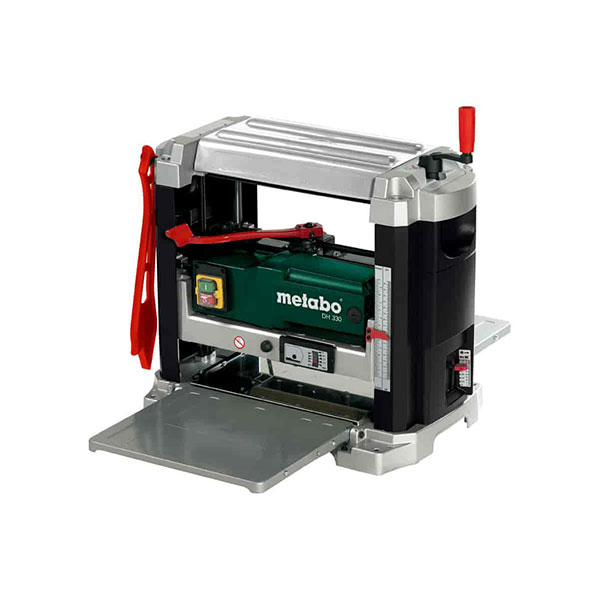

Description
Ideal for mobile use due to low weight
Stable gear for uniform work piece feed
Easy setting of common passage heights using stop points
Convenient height adjustment with crank handle
Powerful universal motor for powerful lugging drive and even planing result
Restart protection: prevents unintentional start-up after power supply interruption
Large feed and exit tables support the conveyance of long materials
Planing locking mechanism prevents unintentional adjustment of the chip removal setting
Precise thickness adjustment for quick and exact planing
Technical Data:
Dimensions579 x 857 x 574 mm / 1.9 x 2.9 x 1.9 ft
Chip removal bench thicknesser0 – 3 mm // 0 – 1/8 ”
Material thickness tableCast aluminium / special steel aluminium
Thickness table L x W840 x 330 mm / 33 x 13 ”
Passage height/width152 / 330 mm // 6 / 13 ”
Feed rate7 m/min / 16 ft/min
Diameter of blade shaft47 mm / 1 7/8 ”
Number of blades2
Revolutions of blade shaft9800 rpm
Rated input power1800 W
Weight35 kg / 77.2 lbs
Noise emission
Uncertainty of measurement K4 dB(A)
