Description

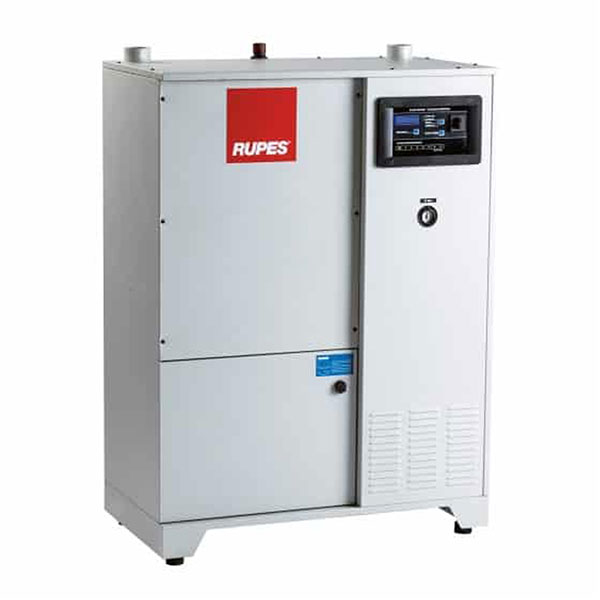

The TURBINE HE901 5,5Kw is part of the suction system of RUPES turbines thanks to high vacuum and flow rates, it allowsmaintain excellent suction performance even in the smallest installations; long and complex.
Teflon filter;
The particular structure of the material reduces the risk of clogging in the case of application with wet or very fine powders
Electronic control system of filtering efficiency
Safety and reliability
ROTOR-JET system
Electronic display
Functional design for easy installation
Automatic lifting system of the filtering group
Applications Designed for the suction of general and sanding dust in many sectors: bodywork, industry,nautical and carpentry, allows the extraction of localized dust, that is generated in the workplace by individual operators.
Designed for heavy and intensive use, it can also be used on two or more work shifts a day.
TECHNICAL DATA
Pump side channel technology √
Electric supply ph 380V 3ph
Power W/hp 5500/7.5
Weight Kg 170
Vacuum level max mm/H₂O 2900
Noise dB(A) 70
Tank capacity l 50
Flow capacity m³/h 550
Filter surface m² 8 Tool 5
Working pressure bar 6
Automatic filter cleaning √
Manual filter cleaning √
Multifunction display √
Filter perfomance display √
ID vacuum nozzle mm 75
Size (hxwxd) mm 198x98x55
