Description

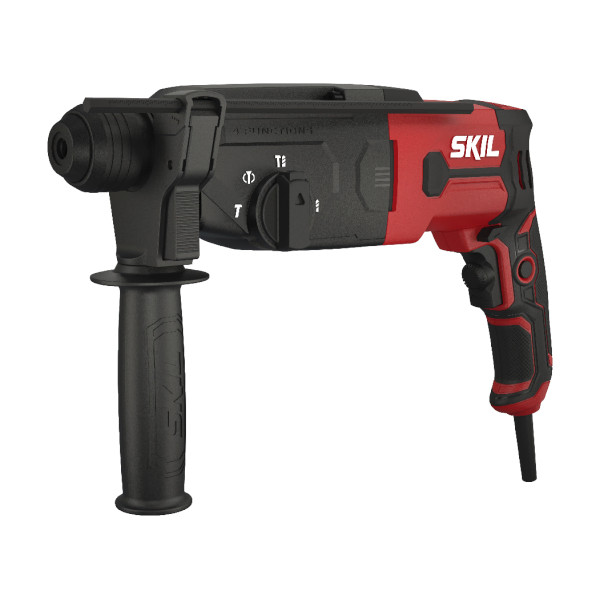

Pneumatic SDS drill with four functions
The pneumatic four-function SKIL 1770 SDS drill has a powerful 850W motor, a variable speed switch with pre-selection and a lock-on button for optimum control of your concrete drilling jobs up to 26 mm. It has a hammer function for drilling in concrete, a hammer stop function for regular drilling and screwdriving, and a rotation stop function for light chiselling jobs. Last but not least, this drill allows chiselling with free rotation. The ‘SDS+’ system enables fast and easy accessory changing. You can use the forward/reverse trigger to conveniently change the working direction of the tool. The anti-slip soft grip and the adjustable side handle enable comfortable two-handed control. With the handy depth gauge you can set the drilling depth for blind holes.
Specifications
| Performance Level | HIGH PERFORMANCE |
|---|---|
| Max. impact rate | 5150 IPM |
| No Load Speed (rpm) | 0-980 |
| Voltage & frequency | 220-240V/50-60Hz |
| Input wattage | 850 W |
| Chuck Type | SDS+ |
| Drilling capacity in steel | 13 mm |
| Material | Nylon |
| Drilling capacity in wood | 40 mm |
| Drilling capacity in concrete | 26 mm |
| Impact force | 2.8 J |
| EAN | 8719643000750 |
| Warranty | 3 year warranty for domestic use. |
| Sound Pressure | 92 dB |
| Uncertainty Noise Power (K) | 3 dB |
| Uncertainty Vibration (K) | 1.5 m/s² |
| Sound Power | 103 dB |
| Vibration level (chiseling) | 13.6 m/s² |
| Vibration level (hammer drilling in concrete) | 11.5 m/s² |
| Power source | Mains (corded) |
| Batteries required | No |
| Recommended surface | Stone |
| Batteries included | No |
Packaging contains
- SKIL 1770 SDS Drill
- Side handle
- Depth gauge
- Instruction manual
