Description
Pneumatic L-shaped SDS drill with three functions
The pneumatic three-function SKIL 1781 SDS drill has a very powerful 1500W motor and speed pre-selection for optimum control. It has a hammer function for drilling in concrete, a hammer stop function for regular drilling, and a rotation stop function for chiselling jobs. The vibration reduction system (‘VRS’), convenient L-shape and robust magnesium housing make this drill ideal for tough jobs involving drilling in concrete up to 36 mm and for chiselling. The ‘SDS+’ system enables fast and easy accessory changing. The anti-slip soft grip and the adjustable anti-vibration side handle enable comfortable two-handed control. With the handy depth gauge you can set the drilling depth for blind holes. The SKIL 1781 GB is supplied in a sturdy case with a set of three 8, 10 and 12 mm ‘SDS+’ concrete drill bits, a point chisel, a flat chisel and a 13-mm chuck with ‘SDS+’ adapter.
Specifications
| Performance Level | HIGH PERFORMANCE |
|---|---|
| Max. impact rate | 400-3000 IPM |
| Plug Type | Type G 3 Pin UK |
| No Load Speed (rpm) | 100-750 |
| Voltage & frequency | 220-240V/50-60Hz |
| Input wattage | 1500 W |
| Chuck Type | SDS+ |
| Drilling capacity in steel | 13 mm |
| Drilling capacity in wood | 40 mm |
| Drilling capacity in concrete | 36 mm |
| Impact force | 5 J |
| EAN | 8719643000811 |
| Order Number | RH1U1781GB |
| Warranty | 3 year warranty for domestic use. |
| Sound Pressure | 94 dB |
| Uncertainty Noise Power (K) | 3 dB |
| Uncertainty Vibration (K) | 1.5 m/s² |
| Sound Power | 105 dB |
| Vibration level (chiseling) | 20.3 m/s² |
| Vibration level (hammer drilling in concrete) | 18.7 m/s² |
| Power source | Mains (corded) |
| Batteries required | No |
| Recommended surface | Stone |
| Batteries included | No |

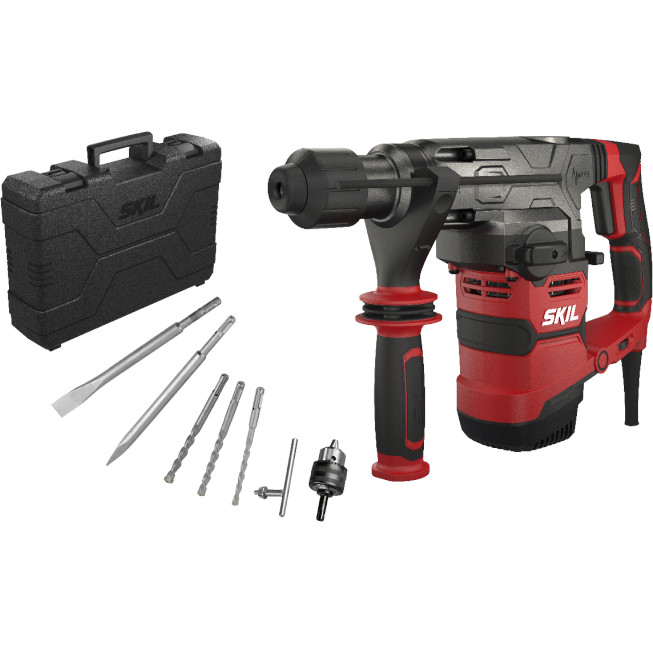

Packaging contains
- SKIL 1781 SDS Drill
- Sturdy carrying case
- ‘SDS+’ drill bits (8, 10, 12 mm)
- ‘SDS+’ point chisel
- ‘SDS+’ flat chisel
- 13 mm chuck with ‘SDS+’ adapter
- Anti-vibration side handle
- Depth gauge
- Instruction manual
