Description
Compact brushless cordless hammer drill with two gears
The ‘20V Max’ 3075 cordless hammer drill is part of SKIL’s compact brushless range. These tools are extremely compact and offer a combination of high performance, durability and an unmatched level of convenience. Like all other SKIL ‘20V Max’ cordless tools, this model is powered by the industry-leading, advanced ‘PWRCORE 20™’ battery and charger technology. Our SKIL 3075 is a brushless cordless hammer drill with impact function. This tool is ideal for drilling into wood, metal and even masonry and for the toughest screwdriving jobs. Thanks to the compact and lightweight design, working overhead or in hard-to-reach tight areas is a breeze. The digital brushless motor delivers more power, more efficiency and a 10x longer lifetime than a comparable brushed motor. The tool has two gears and 17+1+1 torque settings for regular and hammer drilling and precise screwdriving results. Thanks to the function selector you can easily switch between screwdriving, drilling and hammer drilling. This tool has a 13-mm keyless ratcheting chuck for optimal bit gripping strength. Great visibility of the workpiece is assured by the advanced LED light with 2 modes, including torch mode. The automatic spindle lock allows easy accessory changing. All in all, this versatile tool truly offers everything you need: reliable Lithium-Ion battery technology, variable speed for full control and softgrip that provides extra working comfort. The SKIL ‘PWRJUMP™’ charger automatically charges your ‘PWRCORE 20™’ battery from 0% to 15% in the first 5 minutes, so you can get back to the job in a flash. The SKIL 3075 HB is supplied in a carrying case with two 4.0Ah ‘KEEPCOOL™’ batteries, a very fast ‘Auto PWRJUMP™’ 6.0A charger, a double-ended screwdriver bit and a belt clip.
‘PWRCORE 20™’ industry-leading battery technology to power all SKIL ’20V Max’ tools
The ‘PWRCORE 20™’ system consists of industry-leading advanced battery and charger technology, plus innovative features you won’t find anywhere else, such as our patented ‘KEEPCOOL™’ battery cooling technology which increases the runtime by up to 25% and doubles the battery lifetime. Whereas the patented ‘ACTIVCELL™’ technology safeguards a maximum performance and optimal battery protection. The ‘PWRCORE 20™’ batteries and chargers are 100% compatible and interchangeable with all SKIL ‘PWRCORE 20™’ power tools and garden tools for ultimate flexibility.
SKIL XP Pro Series
Built on a legacy of excellence since 1924, the SKIL XP Pro Series is developed for professionals who make smart choices. Representing the very best SKIL has to offer, the SKIL XP Pro Series combines exceptional performance, durability, pro-grade features, and compact ergonomics. Perfectly equipped to take on serious projects in any domestic environment.
Specifications
| Performance Level | ADVANCED PERFORMANCE |
|---|---|
| Product Series | XP Pro Series |
| Drilling capacity in masonry | 13 mm |
| Two mechanical speeds | Yes |
| Drilling capacity in wood | 50 mm |
| Material | Nylon |
| Drilling capacity in steel | 13 mm |
| Chuck capacity (“) | 13 mm |
| Capacity screws | 10 mm |
| Clutch Settings | 17+1+1 |
| Chuck Type | Single-sleeve keyless w/ lock |
| Number of batteries | 2 |
| Charge current | 6 A |
| Voltage Max | 20 V Max |
| No Load Speed (rpm) | 0-500/0-1800 |
| Max. torque hard joint | 60 Nm |
| Battery Type | Lithium-ion |
| Max. impact rate | 0-7500/0-27000 IPM |
| Voltage/frequency (charger) | 220-240V/50-60Hz |
| Net weight excl. battery | 0.9 kg |
| Brushless | Yes |
| Power Platform | PWRCORE20 |
| LED Light | Yes |
| Warranty | 5 year tool warranty for domestic use, 1 year tool warranty for professional use |
| EAN | 4894863200136 |
| Sound Pressure | 88 dB |
| Uncertainty Noise Power (K) | 5 dB |
| Uncertainty Vibration (K) | 1.5 m/s² |
| Sound Power | 99 dB |
| Vibration level (drilling in metal) | < 2.5 m/s² |
| Vibration level (impact drilling in concrete) | 8 m/s² |
| Charging Time | 0.83 h |
| Power source | Battery (cordless) |
| Batteries required | Yes |
| Batteries included | Yes |
| Battery capacity | 4 Ah |

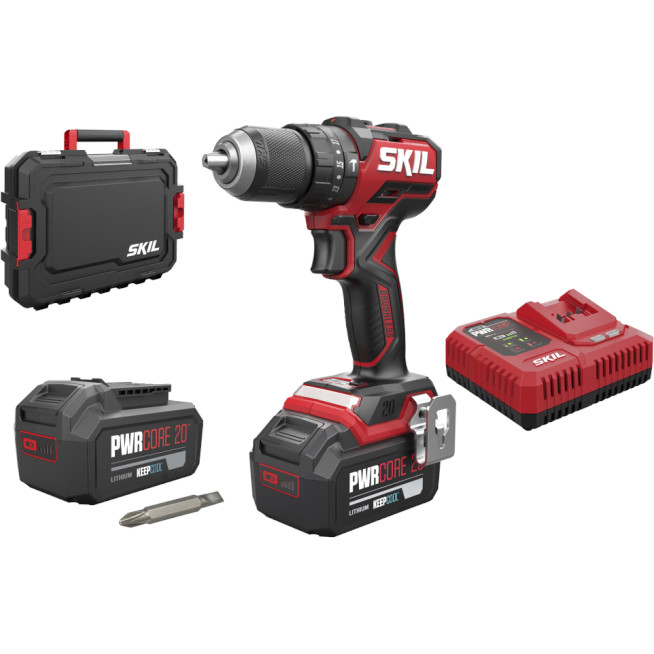

Packaging contains
- SKIL 3075 brushless cordless hammer drill
- 2x ‘PWRCORE 20™’ 4.0Ah Li-ion batteries (3104)
- ‘Auto PWRJUMP™’ 6.0A charger (3123)
- Carrying case
- Double-ended screwdriver bit
- Belt clip
- Instruction manual
