Description
Compact brushless cordless hammer drill with interchangeable attachments
The ‘20V Max’ 3076 cordless multi head hammer drill is part of SKIL’s compact brushless range. These tools are extremely compact and offer a combination of high performance, durability and an unmatched level of convenience. Like all other SKIL ‘20V Max’ cordless tools, this model is powered by the industry-leading, advanced PWRCORE 20™ battery and charger technology. The digital brushless motor delivers more power, more efficiency and a 10x longer lifetime than a comparable brushed motor.
Our SKIL 3076 is a brushless cordless hammer drill with interchangeable attachments and impact function. This tool is ideal for drilling into wood, metal and even masonry and for the toughest screwdriving jobs.
The 10-mm chuck attachment offers optimal versatility when drilling, the right angle attachment enables working in tight and confined spaces, the offset attachment let you work closely to edges and walls and the hex bit holder allows quick bit changes and reduces the tool length.
Thanks to the compact and lightweight design, working overhead or in hard-to-reach tight areas is a breeze. Great visibility of the workpiece is assured by the advanced LED light with 2 modes, including torch mode. The tool has two gears and 17+1+1 torque settings for regular and hammer drilling and precise screwdriving results. The automatic spindle lock allows easy accessory changing. All in all, this versatile tool truly offers everything you need: reliable Lithium-Ion battery technology, variable speed for full control and softgrip that provides extra working comfort.
SKIL 3076 JA is supplied in a carrying case with a set of attachments, including a 10-mm chuck, a right angle, offset and ¼” hex bit holder attachment, a 6-piece screwdriving bit set, a double-ended screwdriver bit and a belt clip. The battery and charger aren’t included.
PWRCORE 20™ industry-leading battery technology to power all SKIL ’20V Max’ tools
The PWRCORE 20™ system consists of industry-leading advanced battery and charger technology, plus innovative features you won’t find anywhere else, such as our patented KEEPCOOL™ battery cooling technology which increases the runtime by up to 25% and doubles the battery lifetime. Whereas the patented ACTIVCELL™ technology safeguards a maximum performance and optimal battery protection. The PWRCORE 20™ batteries and chargers are 100% compatible and interchangeable with all SKIL PWRCORE 20™ power tools and garden tools for ultimate flexibility.
SKIL XP Pro Series
Built on a legacy of excellence since 1924, the SKIL XP Pro Series is developed for professionals who make smart choices. Representing the very best SKIL has to offer, the SKIL XP Pro Series combines exceptional performance, durability, pro-grade features, and compact ergonomics. Perfectly equipped to take on serious projects in any domestic environment.
Specifications
| Performance Level | ADVANCED PERFORMANCE |
|---|---|
| Product Series | XP Pro Series |
| Two mechanical speeds | Yes |
| Drilling capacity in wood | 50 mm |
| Material | Nylon |
| Chuck Capacity (mm) | 10 |
| Number of Gear Speeds | 2 |
| Tool Length (mm) | 137.4 |
| Tool Width (mm) | 67.5 |
| Tool Height (mm) | 198.5 |
| Tool Weight (kg) | 0.76 |
| Tool Length (inch) | 5.41 |
| Tool Width (inch) | 2.66 |
| Tool Height (inch) | 7.81 |
| Impact Rate (ipm) | 0-7500/0-27000 |
| Chuck Material | Plastic |
| Max. Screw Capacity (mm) | 10 |
| Tested Torque(W/2P) (Nm) | 30 |
| Drilling capacity in steel | 13 mm |
| Chuck capacity (inch) | 3/8 |
| Chuck capacity (“) | 10 mm |
| Capacity screws | 10 mm |
| Clutch Settings | 17+1+1 |
| Chuck Type | Detachable chuck |
| Motor Type | Brushless |
| Voltage Max | 20 V Max |
| No Load Speed (rpm) | 0-500/0-1800 |
| Max. torque hard joint | 60 Nm |
| Battery Type | Lithium-ion |
| Max. impact rate | 0-7500/0-27000 IPM |
| Net weight excl. battery | 0.76 kg |
| Brushless | Yes |
| Power Platform | PWRCORE20 |
| LED Light | Yes |
| Chuck with Integrated Hex Bit Holder | No |
| On-Board Chuak Key Storage | No |
| Function Selection | Y, Quick Separate Selection |
| Pre-Speed Dial | No |
| Impulse Function | No |
| On-board Bit Storage | Yes |
| Warranty | 5 year tool warranty for domestic use, 1 year tool warranty for professional use |
| Boost Speed | No |
| Auto-Stop Carbon Brush | No |
| Bubble Level | No |
| Constant power | No |
| E-torque | No |
| External carbon brush exchange | No |
| Forward / Reverse Selector | Yes |
| Integrated Belt Clip | No |
| Live-on indicator | No |
| On-board Fuel Gauge | No |
| Anti-vibration Side Handle | No |
| Chuck with Carbide Teeth | No |
| Forward / Reverse Indicator | No |
| Spindle Lock | Yes |
| EAN | 4894863202321 |
| Sound Pressure | 90 dB |
| Uncertainty Noise Power (K) | 5 dB |
| Sound Power | 98 dB |
| Category Type | Power Tools |
| Power source | Battery (cordless) |
| Voltage (V) | 20 V |
| Batteries required | No |
| Batteries included | No |

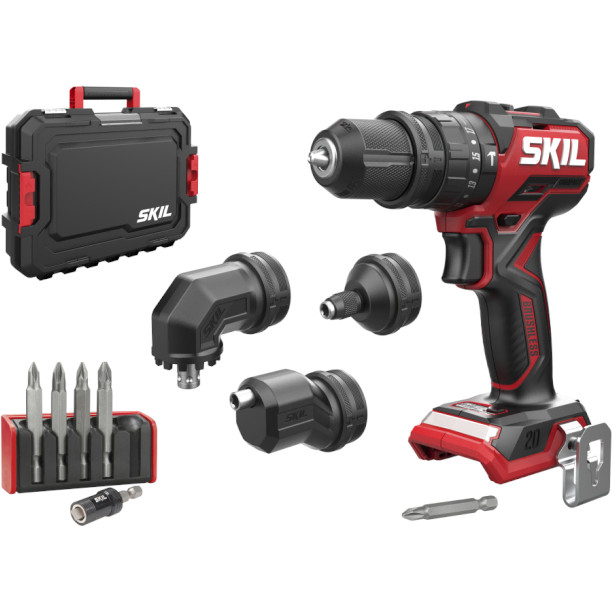

Packaging contains
- SKIL 3076 brushless cordless hammer drill
- Carrying case
- 6-pc screwdriving bit set (incl. ‘BIT GRIP™’)
- 10 mm chuck attachment
- Right angle attachment
- Offset attachment
- ¼” hex bit holder attachment
- PH2 screwdriver bit
- Belt clip
- Instruction manual
