Description
Brushless cordless multi-material saw with large 41 mm cutting depth
The ‘20V Max’ 3540 cordless multi-material saw is part of SKIL’s compact brushless range. These tools are extremely compact and offer a combination of high performance, durability and an unmatched level of convenience. Like all other SKIL ‘20V Max’ cordless tools, this model is powered by the industry-leading advanced ‘PWRCORE 20™’ battery and charger technology. Our SKIL 3540 brushless cordless multi-material saw is the compact alternative to circular saws. This lightweight one-hand saw is the ideal tool for very convenient sawing of panels and flooring. And with the multi-material blades supplied, this tool is suitable for cutting through a wide variety of materials, such as wood, laminate, plastic, aluminium and ceramic tiles. Despite its extremely compact size, the SKIL 3540 still has an impressive maximum cutting depth of 41 mm. The digital brushless motor delivers more power, more efficiency and a 10x longer lifetime than a comparable brushed motor. Good visibility of your work is assured, thanks to the LED light that illuminates the line of cut and the blower function that keeps the line of cut clean. Other handy features include the electric brake for extra working comfort and the soft start for gradual run-up to maximum speed. Dust-protected bearings protect the saw from dust to extend the saw’s lifetime. The SKIL ‘PWRJUMP™’ charger automatically charges your ‘PWRCORE 20™’ 2.0Ah battery from 0% to 25% in the first 5 minutes, so you can get back to the job in a flash. The ‘PWRASSIST™’ 2.0Ah battery is designed with an integrated USB-A port. It allows you to easily power other mobile devices as well. The SKIL 3540 DA is supplied in a carrying bag with one 2.0Ah ‘PWRASSIST™ KEEPCOOL™’ battery, a very fast ‘Auto PWRJUMP™’ 6.0A charger, one carbide-tipped saw blade, one hardened-steel saw blade, one diamond cutting disc, a vacuum cleaner adapter and a parallel guide for straight sawing assistance.
‘PWRCORE 20™’ industry-leading battery technology to power all SKIL ’20V Max’ tools
The ‘PWRCORE 20™’ system consists of industry-leading advanced battery and charger technology, plus innovative features you won’t find anywhere else, such as our patented ‘KEEPCOOL™’ battery cooling technology which increases the runtime by up to 25% and doubles the battery lifetime. Whereas the patented ‘ACTIVCELL™’ technology safeguards a maximum performance and optimal battery protection. The ‘PWRCORE 20™’ batteries and chargers are 100% compatible and interchangeable with all SKIL ‘PWRCORE 20™’ power tools and garden tools for ultimate flexibility.
SKIL XP Pro Series
Built on a legacy of excellence since 1924, the SKIL XP Pro Series is developed for professionals who make smart choices. Representing the very best SKIL has to offer, the SKIL XP Pro Series combines exceptional performance, durability, pro-grade features, and compact ergonomics. Perfectly equipped to take on serious projects in any domestic environment.
Specifications
| Performance Level | ADVANCED PERFORMANCE |
|---|---|
| Net weight excl. battery | 1.8 kg |
| Saw blade Ø | 120 mm |
| Sawing capacity at 90° | 41 mm |
| Sawing capacity at 45° | 26.5 mm |
| Product Series | XP Pro Series |
| Material | Nylon |
| Base Material | Steel |
| Blade Material | Carbide |
| Number of batteries | 1 |
| Charge current | 6 A |
| Voltage Max | 20 V Max |
| No Load Speed (rpm) | 6000 |
| Power Platform | PWRCORE20 |
| Brushless | Yes |
| Warranty | 5 year tool warranty for domestic use, 1 year tool warranty for professional use |
| LED Light | Yes |
| EAN | 4894863200303 |
| Arbor Diameter | 9.5 mm |
| Sound Pressure | 96 dB |
| Uncertainty Vibration (K) | 1.5 m/s² |
| Sound Power | 107 dB |
| Uncertainty noise pressure (K) | 3 dB |
| Vibration level (cutting wood) | < 2.5 m/s² |
| Power source | Battery (cordless) |
| Charging Time | 0.5 h |
| Batteries required | Yes |
| Battery capacity | 2.0 Ah |
| Batteries included | Yes |

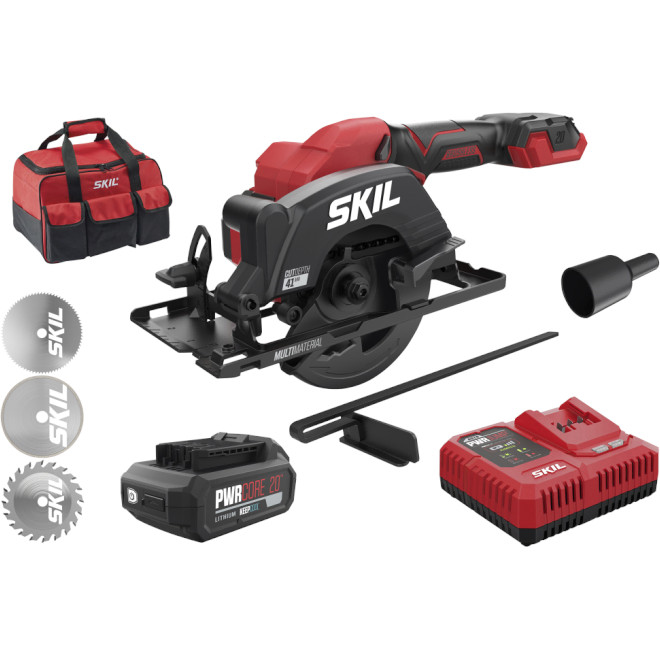

Packaging contains
- SKIL 3540 cordless multi material saw
- 2.0Ah ‘PWRCORE 20™’ Li-ion battery with ‘PWRASSIST™’ (3130)
- ‘Auto PWRJUMP™’ 6.0A charger (3123)
- Carrying bag
- Carbide-tipped saw blade (Ø 120 mm)
- Hardened-steel saw blade (Ø 115 mm)
- Diamond disc (Ø 115 mm)
- Vacuum cleaner adapter
- Parallel guide
- Hex key
- Instruction manual
